LFL — LIFO Load

---

Description

LFL (LIFO Load) pushes a value onto a last-in, first-out stack each time its rung goes from false to true. The stack is an array tag; the control tag’s position is the number of entries and the index the next push lands in. LFL pairs with an LFU (LIFO Unload) on the same control tag and array, which pops the newest entry. Use a stack to retrace steps: the last position visited, the last recipe change, the last fault. Do not use it where order of arrival matters; that is a FIFO.

---

Operands

Operand	Type	Format	Valid Range	Required	Description
Control	CONTROL tag	Tag or Tag[n]	Shared with exactly one LFU	Yes	Holds LEN, POS and the status bits.
Source	INT or DINT tag, member, element or literal	Tag, 9	Any	Yes	The value pushed.
File	INT or DINT array tag	Tag	At least Length + 1 elements	Yes	The stack. Entries occupy elements 0 to POS − 1; the newest is at POS − 1.
Length	Whole number	4	1 to array size − 1	Yes	Stack capacity.
Position	Whole number	0	0 to Length	No	Entries at power-up; normally 0.

---

Scan Behavior

Prescan

LEN is loaded from Length and POS from Position.

Rung-condition-in is false

EN is cleared. Nothing is pushed.

Rung-condition-in is true

On the scan the rung turns true, if POS is below LEN the Source is written to File[POS] and POS increments. DN is set while POS equals LEN, so a push against a full stack is ignored. EM is set while POS is 0.

Postscan

Nothing.

Condition	EN	DN	EM	POS	File
Power-up	0	0	1	0	holds
Rung false	0	holds	holds	holds	holds
False → true, POS < LEN	1	POS = LEN after	0	+1	File[POS] = Source
False → true, POS = LEN	1	1	0	holds	holds
RES on the control	0	0	0	0	holds

---

Member Bits

Bit	Mnemonic	Data type	Set by	Cleared by	Operation description
Enable	.EN	BOOL	The LFL rung being true	The LFL rung being false, or RES	Mirrors the load rung, and is the load half’s edge memory.
Enable unload	.EU	BOOL	The LFU rung being true	The LFU rung being false, or RES	Mirrors the unload rung, and is the unload half’s edge memory. Two bits, so the two rungs never disturb each other’s edge.
Done	.DN	BOOL	POS reaching LEN	An unload, or RES	The stack is full; further loads are ignored.
Empty	.EM	BOOL	POS at 0 after a load or unload	The first load, or RES	The stack is empty; an unload does nothing.
Error	.ER	BOOL	Never	RES	Reserved. Bad operands are refused at validation.
Unload	.UL	BOOL	Never	RES	Not used by LIFO.
Inhibit	.IN	BOOL	Never	RES	Reserved.
Found	.FD	BOOL	Never	RES	Not used by LIFO.
Length	.LEN	INT	Length at power-up	Never (RES preserves it)	Stack capacity.
Position	.POS	INT	Each load (+1) and unload (−1)	RES (to 0)	Number of entries; also the index of the next push.

---

Example

Scenario: A pick-and-place records each position it visits so an operator can step it back through them in reverse order after a jam.

Tags:

• Push — Position reached, BOOL
• Push_Val — Position number, INT
• Stack — The stack, INT[8]
• Stack_Ctl — Control, CONTROL, Length 4
• Pop — Step back, BOOL
• Pop_Val — Position to return to, INT

Rungs 1 and 2:

—] [Push———[LFL Stack_Ctl  Push_Val  Stack  4]———
—] [Pop———[LFU Stack_Ctl  Stack  Pop_Val  4]———

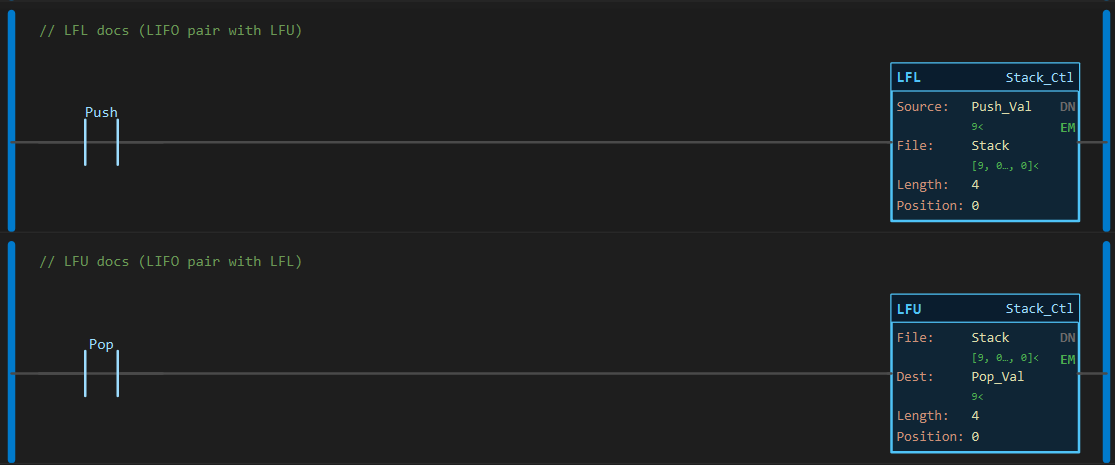

Scan 1 — both rungs false. Push_Val reads 9. Position 0 and EM lit say the stack is empty. The stack has already been through one push and pop here, which is why Stack still lists a 9 in element 0 and Pop_Val still reads 9: a pop moves Position, it does not erase anything, and Dest keeps its last value.

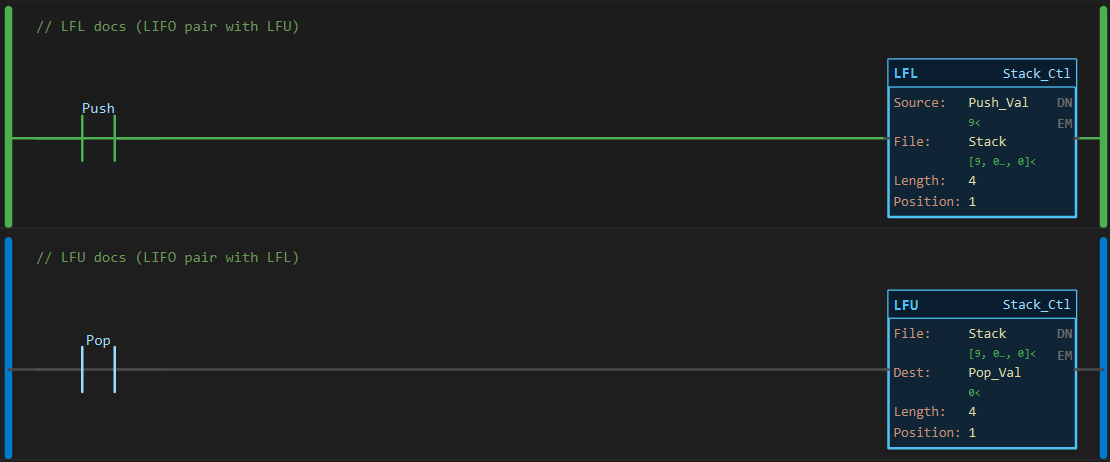

Scan 2 — Push = 1. 9 is pushed: Stack[0] becomes 9, Position 1, EM dark.

Scan 3 — Pop = 1. The LFU pops the newest entry: Pop_Val reads 9, Position 0, EM lit.

Push 9, 12 and 15 in turn and three pops return 15, 12, 9: the reverse of the order they went in, which is what “step back” needs.

---

Control Tag Errors and Troubleshooting

Error definitions

.ER cause	Condition that sets it	.POS / status value	Meaning
None	.ER is never set by LadderIDE	—	A File that is not an INT/DINT array, a Length of array size or more, or a third instruction on the control tag is refused at validation.

Troubleshooting hints

Symptom: Pushes are lost. Likely cause: The stack is full; .DN is set. Fix: Increase Length and the array, or block the push with XIO Stack_Ctl.DN.

Symptom: Pops come out in arrival order. Likely cause: An FFU was placed instead of an LFU. Fix: Read the block title; LFU pops from File[POS − 1], FFU from File[0].

---

See Also

• LFU — LIFO Unload (the other half of the pair)
• FFL — FIFO Load (a queue instead of a stack)
• RES — Reset (empty the stack)
• Shift/Sequencer Instructions — Category index

---

Notes

No shifting. Unlike a FIFO, a pop does not move the other entries; POS simply steps back, so a LIFO costs nothing per entry.

The block colours neutral. Watch the rung wire, the Position row and the DN/EM indicators.
